[EP-tech] Re: How to customise Division listings

Hi John

Thanks, we were closed for few days for our National Day. I've completed till step 4 below, wasn't sure of step 5 onwards, hope you can help again.

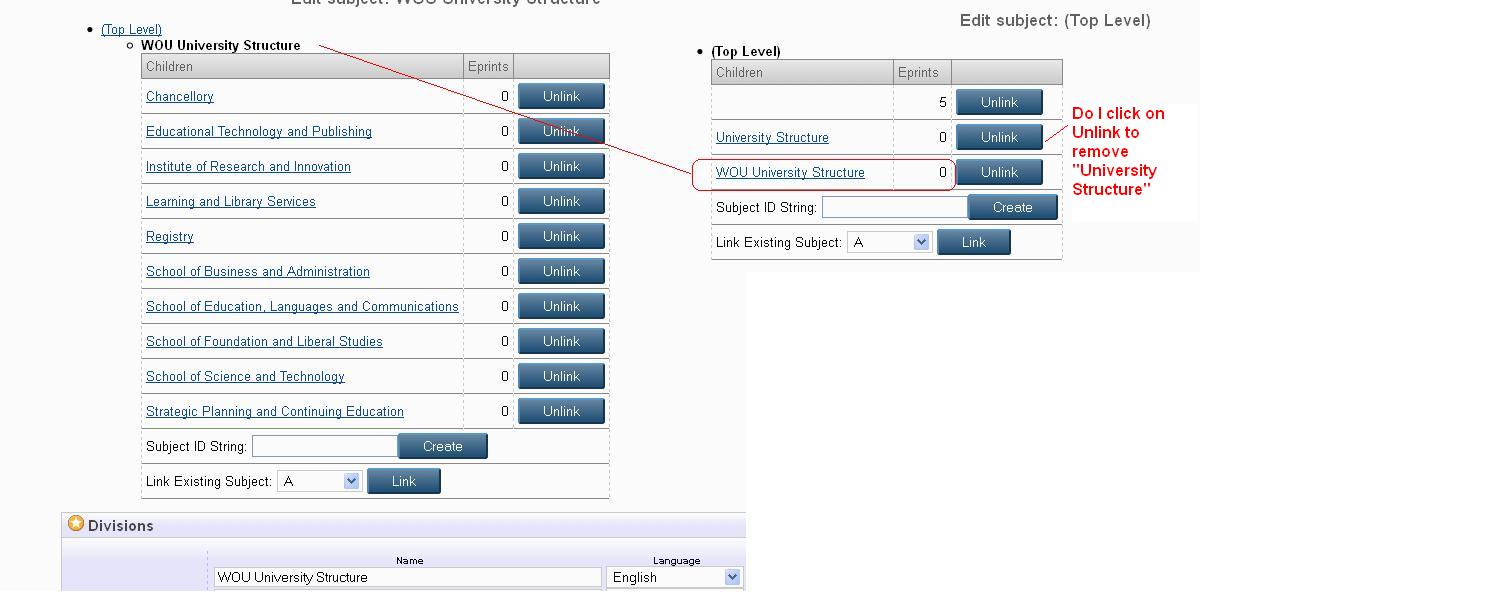

For Step (5) to remove the old "University Structure" refers to clicking at the Unlink, then click unlink on all the existing old sub-nodes? Is this correct.
The Eprint box column value should always be a zero value? I attached herewith the latest configuration for your perusal.

Is there a need to restart server after completing all the steps?


Regards
Chew


>>> On Thursday, August 30, 2012 at 9:33 PM, in message <EMEW3|13d3dc89d34be1d9539b5214a4069763o7YEYn14eprints-tech-bounces|ecs.soton.ac.uk|7154BCBB8909D642AE6F44CA713DBC20056B9EB630FA@HERMES7.ds.leeds.ac.uk>, John Salter <J.Salter@leeds.ac.uk> wrote:
Hi Chew,
 You can view the configuration files in the admin interface - without going to the command line:
Admin -> Config Tools -> View Configuration (and then select the file). It's good to understand this a little bit.

To solve your divisions issue, I would do the following:
1. From the top-level of the subjects, enter 'divisions' as a Subject ID string, and click 'create'.
2. Enter a name for it ('new university structure' - so you can tell which one is which - you can edit the name later!)
3. From the new node ( URL should be ...dataobj=divisions), link each of your new nodes: Link existing subject -> choose 'LI' for 'Learning and Library'.
4. After linking all the divisions to the 'new university structure', you should be able to unlink them from the top-level.
5. Remove the old 'University Structure'
6. Rename the 'new university structure' to 'University Structure'.
7. :o)

Hopefully that will sort thinks out.
Cheers,
John

From: Chew Bee Leng [mailto:blchew@wou.edu.my]
Sent: 30 August 2012 13:52
To: 'eprints-tech@ecs.soton.ac.uk'; John Salter
Subject: RE: [EP-tech] Re: How to customise Division listings

Hi John

As per your request. Our Eprint 3 is currently for in-campus access only:

Top-level

University Structure

Learning and Library Services


I'm not too good with programming language, but I'll try to understand the command line belows. Yes, you're right, I've done it incorrectly. I think I have actually deleted the University Structure and sub-divisions by clicking the Unlink and remove each of them.

Many thanks for your assistance and time to assist me on this.


Chew

>>> On Thursday, August 30, 2012 at 5:20 PM, in message <7154BCBB8909D642AE6F44CA713DBC20056B9EB630EB@HERMES7.ds.leeds.ac.uk>, John Salter <J.Salter@leeds.ac.uk> wrote:
Hi Chew,
Can you email me the URL of the page when you are editing the top-level of the subjects. It doesn't matter if I can not get to the server - the URL should be enough to help.
E.g.
and
-> Library Services: http://your.server.name/....?

A fresh install of EPrints has two (if I remember correctly) default subject trees: 'Library of Congress' and 'University Structure'. I think what you have done is added items at the same level as these, instead of adding the divisions to the 'University Structure'.

In the eprint workflow (~/archives/[ARCHIVEID]/cfg/workflows/eprint/default.xml), you should be able to see a component like:
<component><field ref="divisions" /></component>
(Compare this with the 'subject' component in the workflow too).

If you look at the definition of the 'divisions' field in ~/archives/[ARCHIVEID]/cfg/cfg.d/eprint_fields.pl:
{
 name => 'divisions',
 type => 'subject',
 multiple => 1,
 top => 'divisions',
 browse_link => 'divisions',
},
the value of 'top' shows where in the subject tree (both divisions and subjects) it will render from. I suspect that you have added items alongside 'divisions' instead of beneath it.

If you want to see a fresh install of the EPrints, you can use http://demoprints.eprints.org - if you register, you can make yourself an admin and edit the subject tree on there too.

Cheers,
John



From: Chew Bee Leng [mailto:blchew@wou.edu.my]
Sent: 30 August 2012 05:16
To: eprints-tech@ecs.soton.ac.uk; John Salter
Subject: [EP-tech] Re: How to customise Division listings


Hi John

Many thanks for the clear explanation. The listing is still not being updated, can view 1 of 10 only. I applied the same setting for all. I've actually redo and assigned subject ID string for each divisions created. Currently our divisions are a unit by itself, so we are not using the Link Existing Subject. I've actually added 9 other divisions and did the Depositable settings to "Yes" for all. Can you have a look at the attached print screens, probably the Top Level setting is incorrect. The first row header which is blank refers to the "Library of Congress Subject Areas" (Eprint 5), which I'm unable to reedit it.

I've tried Config Tool--> Update Database step as well, no luck.

Thanks again.

Chew




>>> On Wednesday, August 29, 2012 at 6:42 PM, in message <EMEW3|9c2269f132bb06813820b031e23694e1o7SBi314eprints-tech-bounces|ecs.soton.ac.uk|7154BCBB8909D642AE6F44CA713DBC20056B9EB630E5@HERMES7.ds.leeds.ac.uk>, John Salter <J.Salter@leeds.ac.uk> wrote:
Hi,
For the nodes that don't display, check that 'Depositable' is set to 'Yes', or that there are some child-nodes to the item.

E.g. In admin (from the screen shot you attached), click the 'Learning & Library Services' link.
Either add children, or make it depositable.

The 'Subject ID string' is required -  and is used as the key in the database. If your institution already has a identifiers for divisions, you may be able to use them (makes joining EPrints to a central systems easier).
The 'Link Existing Subject' allows you to make a complex tree with cross-links between branches. E.g. if you have a division that belongs in both 'Learning & Library Services' and 'Chancellory', create the child in one place, and link it from the other place (don't know if I have explained that well enough?).

Hope that helps more!
Cheers,
John

From: eprints-tech-bounces@ecs.soton.ac.uk [mailto:eprints-tech-bounces@ecs.soton.ac.uk] On Behalf Of Chew Bee Leng
Sent: 29 August 2012 10:49
To: 'eprints-tech@ecs.soton.ac.uk'
Subject: [EP-tech] Re: How to customise Division listings

Hi John

Tq..somehow the edited output doesn't display correctly, showed only one out of 3. Can you advise what's wrong?
Is the subject ID string and link existing subject compulsory and related to each divisions created? What does the value "0" represent in the Eprint column box under each "children". I attached the latest configuration made for your understanding. Thanks for the assistance.


Chew



>>> On Wednesday, August 29, 2012 at 4:55 PM, in message <EMEW3|428afa77722a0ffe5f4459808d6d11f8o7S9vB14eprints-tech-bounces|ecs.soton.ac.uk|7154BCBB8909D642AE6F44CA713DBC20056B9EB630E1@HERMES7.ds.leeds.ac.uk>, John Salter <J.Salter@leeds.ac.uk> wrote:
Hi (and welcome to EPrints :o),
The 'Divisions' is a subject-tree, and can be edited using the 'Edit Subjects' link (below the 'Phrase Editor' button in Admin->Edit Config).
Choose the 'University Structure' to edit the divisions.

Cheers,
John


From: eprints-tech-bounces@ecs.soton.ac.uk [mailto:eprints-tech-bounces@ecs.soton.ac.uk] On Behalf Of Chew Bee Leng
Sent: 29 August 2012 03:40
To: eprints-tech@ecs.soton.ac.uk
Subject: [EP-tech] How to customise Division listings

Dear Sir

Our library s a new user to Eprint 3. We would like to seek assistance on how administrator can customize the Divisions drop-down listings as per attached.
Please advise how to do this and which server configuration file to access to. Going through the Admin --> Configuration Tools --> Phrase Editor doesn't help with the editing.

Appreciate your technical advise. Thank you very much.

Regards
Bee Leng





Chew Bee Leng

Assistant Library Manager | Learning & Library Services



T +60 4 2180 180 | F +60 4 227 9214

E blchew@wou.edu.my

54 Jalan Sultan Ahmad Shah

10050 George Town, Penang, Malaysia
